外徑千分尺
直進式結構減少了因旋轉而產生的扭力造成的誤差，適合測量軟性材料的厚度。
| 貨號 | 測量范圍 | 精度 | 分辨力 |
|---|---|---|---|
| 153-01-450 | 0-25mm | ±0.002mm | 0.001mm |
| 153-02-450 | 25-50mm | ±0.002mm | 0.001mm |
| 153-03-450 | 50-75mm | ±0.003mm | 0.001mm |
| 153-04-450 | 75-100mm | ±0.003mm | 0.001mm |

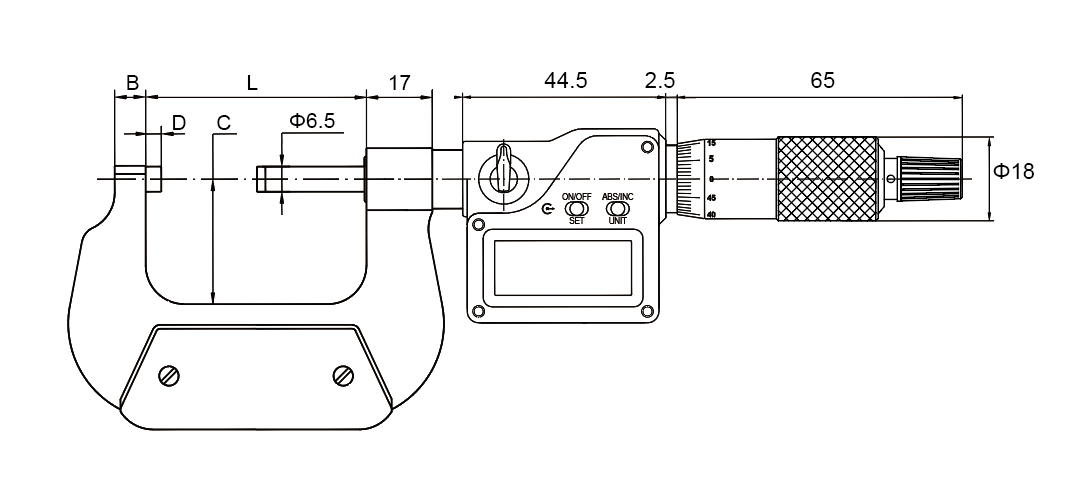

| 測量范圍 | C | L | B | D |
|---|---|---|---|---|
| 0-25mm | 24mm | 32mm | 6mm | 3.0mm |
| 25-50mm | 32mm | 57mm | 8mm | 3.0mm |
| 50-75mm | 45mm | 82mm | 8mm | 3.0mm |
| 75-100mm | 57mm | 107mm | 8mm | 3.0mm |
