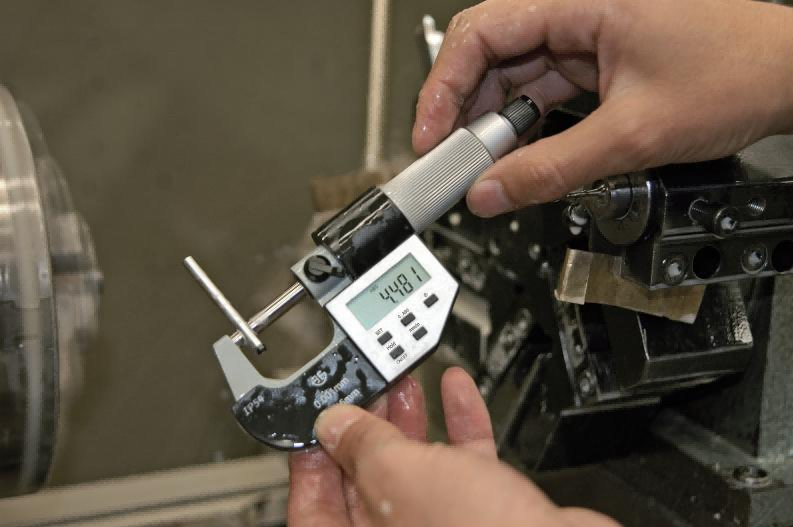

外徑千分尺
方便單手使用。
IP54防護等級。
通電后，顯示值即為絕對測量的起始值。
硬質合金測量面。
棘輪套測力。
| 貨號 | 測量范圍 | 精度 | 分辨力 |
|---|---|---|---|
| 132-01-040 | 0-25mm | ±0.002mm | 0.001mm |
| 132-02-040 | 25-50mm | ±0.002mm | 0.001mm |
| 132-03-040 | 50-75mm | ±0.003mm | 0.001mm |
| 132-04-040 | 75-100mm | ±0.003mm | 0.001mm |
| 132-05-040 | 100-125mm | ±0.003mm | 0.001mm |
| 132-06-040 | 125-150mm | ±0.003mm | 0.001mm |
| 132-07-040 | 150-175mm | ±0.004mm | 0.001mm |
| 132-08-040 | 175-200mm | ±0.004mm | 0.001mm |

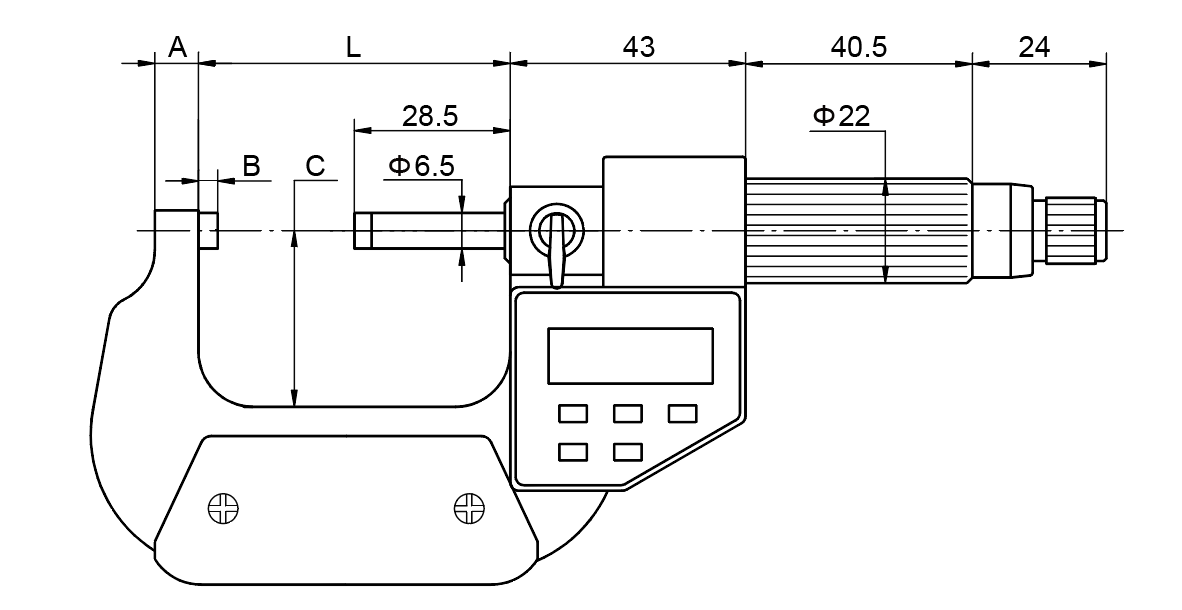

| 測量范圍 | A | B | C | L |
|---|---|---|---|---|
| 0-25mm | 6mm | 3.0mm | 24mm | 32mm |
| 25-50mm | 8mm | 3.0mm | 32mm | 57mm |
| 50-75mm | 8mm | 3.0mm | 45mm | 82mm |
| 75-100mm | 8mm | 3.0mm | 57mm | 107mm |
| 100-125mm | 8mm | 3.0mm | 70mm | 133mm |
| 125-150mm | 8mm | 3.0mm | 82mm | 158mm |
| 150-175mm | 8mm | 5.5mm | 95mm | 183mm |
| 175-200mm | 8mm | 5.5mm | 107mm | 209mm |
| 開/關鍵 | √ |
| 絕對/相對測量模式轉換 | √ |
| 公制/英制測量模式轉換 | √ |
| 絕對測量初始值設置鍵 | √ |
| 顯示數據輸出鍵 | √ |
| 數據保持 | √ |
| 電池型號 | CR2032 |
| 自動斷電 | √ |
| RS232輸出接口 | √ |
| 接口電纜（選配） | P1505 |
