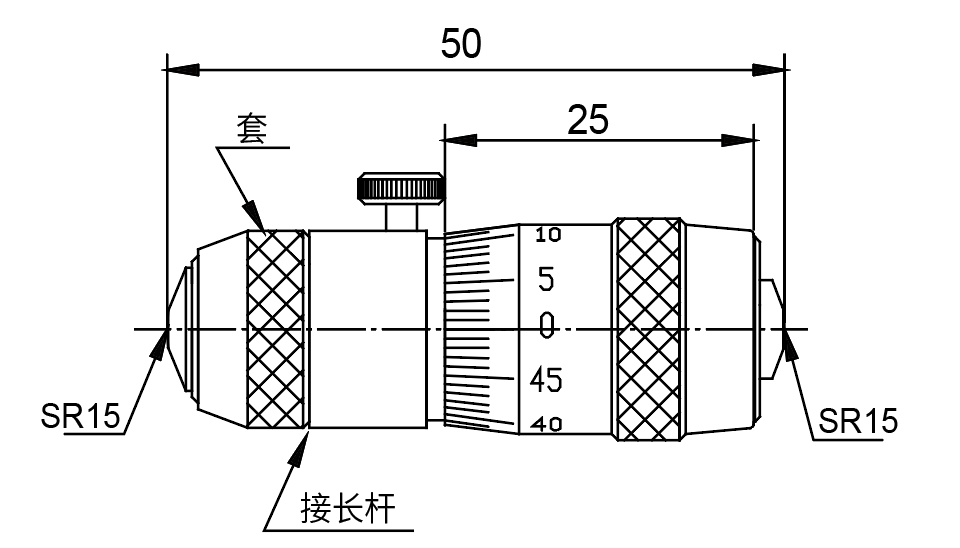

內徑千分尺
組合接桿測量范圍大。
配有校對卡規，校對零位。
鋼管測桿外圓尺寸Φ15.5mm。
精度：(3+n+L/50)μm (n=接桿數，L=最大測 量長度)。
分辨力：0.01mm。
可選硬質合金測量面：302-XX-070。
| 貨號 | 測量范圍 | 接桿 |
|---|---|---|
| 301-10-060 | 50-63mm | 微分頭 |
| 301-11-060 | 50-100mm | 13mm,25mm |
| 301-12-060 | 50-150mm | 13mm,25mm,50mm |
| 301-13-060 | 50-300mm | 13mm,25mm,50mm(2件),100mm |
| 301-14-060 | 50-500mm | 13mm,25mm,50mm(2件),100mm,200mm |
| 301-21-060 | 50-900mm | 13mm,25mm,50mm,100mm,150mm,200mm,300mm |
| 301-15-060 | 50-1000mm | 13mm,25mm,50mm,100mm(2件),150mm,200mm,300mm |
| 301-16-060 | 50-1500mm | 13mm,25mm,50mm,100mm(2件),150mm,200mm(2件),300mm(2件) |
| 301-02-060 | 50-75mm | 13mm |
| 301-03-060 | 50-175mm | 13mm,25mm(2件),50mm |
| 301-04-060 | 50-250mm | 13mm,25mm,50mm,100mm |
| 301-05-060 | 50-600mm | 13mm,25mm,50mm,100mm,150mm,200mm |
