變型千分尺
IP65防護等級。
數顯系統與133-XX-450電子外徑千分尺相同。

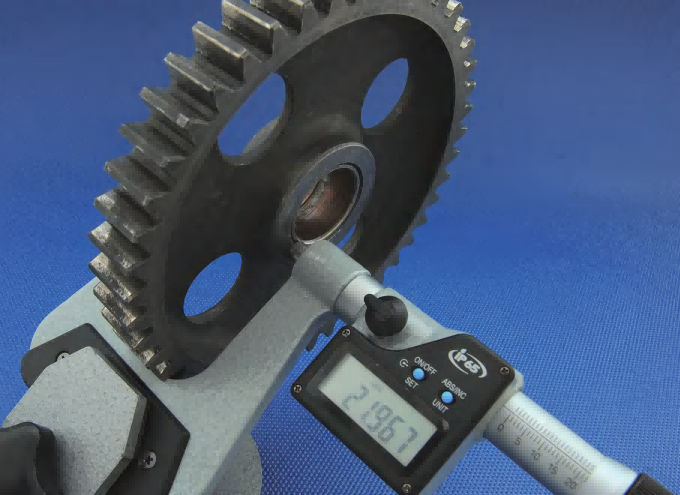

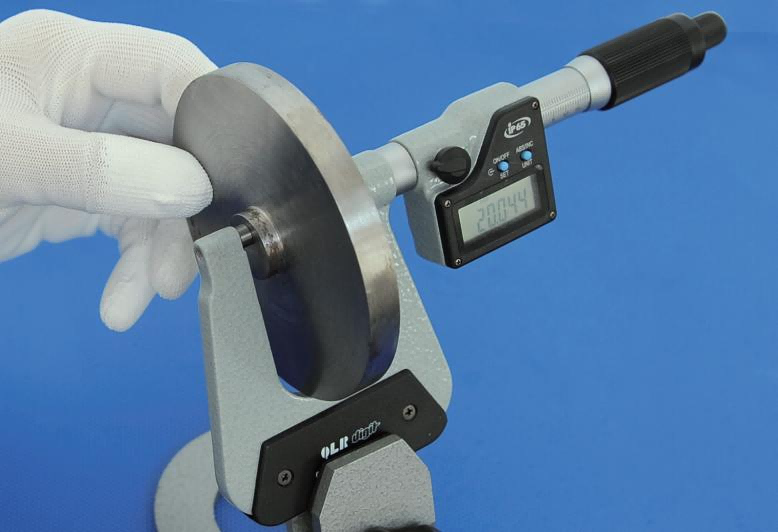

深弓架千分尺適用于測量鋼板、紙板、塑料板等板材的厚度。
硬質合金測量面。
電子顯示、刻度顯示。
棘輪測力。
| 貨號 | 測量范圍 | 精度 | ||
|---|---|---|---|---|

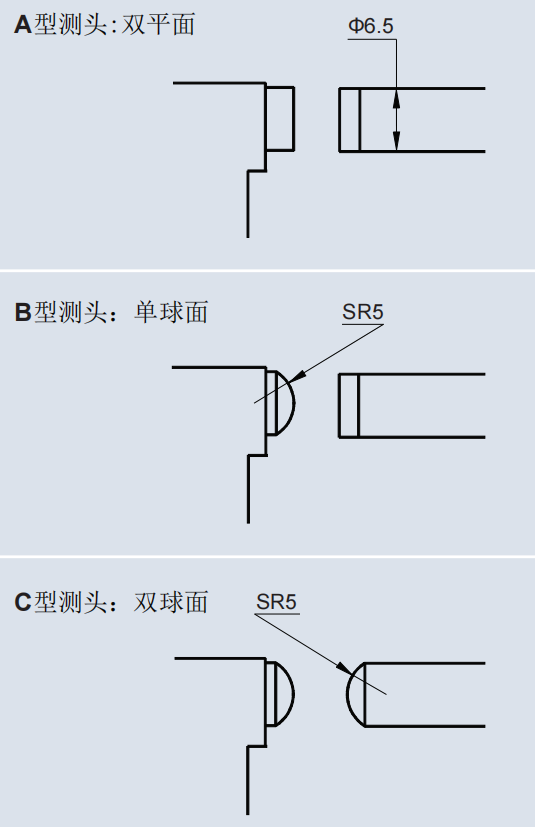

| A型測頭 | B型測頭 | C型測頭 | ||
| 弓深50mm | ||||
| 293-01-450 | 293-01-550 | 293-01-650 | 0-25mm | ±0.002mm |
| 293-02-450 | 293-02-550 | 293-02-650 | 25-50mm | ±0.002mm |
| 弓深100mm | ||||
| 293-03-450 | 293-03-550 | 293-03-650 | 0-25mm | ±0.003mm |
| 293-04-450 | 293-04-550 | 293-04-650 | 25-50mm | ±0.003mm |
| 弓深150mm | ||||
| 293-05-450 | 293-05-550 | 293-05-650 | 0-25mm | ±0.003mm |
| 293-06-450 | 293-06-550 | 293-06-650 | 25-50mm | ±0.003mm |
| 弓深300mm | ||||
| / | 293-07-550 | 293-07-650 | 0-25mm | ±0.004mm |
| / | 293-08-550 | 293-08-650 | 25-50mm | ±0.004mm |
