變型千分尺
IP54防護等級。
數顯系統與132-XX-040電子外徑千分尺相同。
棘輪套測力。
| 貨號 | 測量范圍 | 精度 | ||
|---|---|---|---|---|

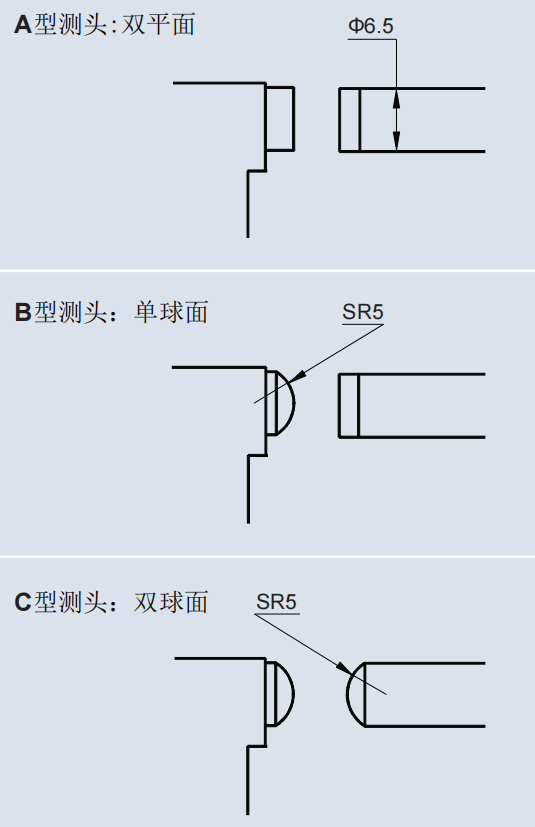

| A型測頭 | B型測頭 | C型測頭 | ||
| 弓深50mm | ||||
| 233-01-040 | 233-11-040 | 233-21-040 | 0-25mm | ±0.002mm |
| 233-02-040 | 233-12-040 | 233-22-040 | 25-50mm | ±0.002mm |
| 弓深100mm | ||||
| 233-03-040 | 233-13-040 | 233-23-040 | 0-25mm | ±0.003mm |
| 233-04-040 | 233-14-040 | 233-24-040 | 25-50mm | ±0.003mm |
| 弓深150mm | ||||
| 233-05-040 | 233-15-040 | 233-25-040 | 0-25mm | ±0.003mm |
| 233-06-040 | 233-16-040 | 233-26-040 | 25-50mm | ±0.003mm |
| 弓深300mm | ||||
| / | 233-17-040 | 233-27-040 | 0-25mm | ±0.004mm |
| / | 233-18-040 | 233-28-040 | 25-50mm | ±0.004mm |
