變型千分尺

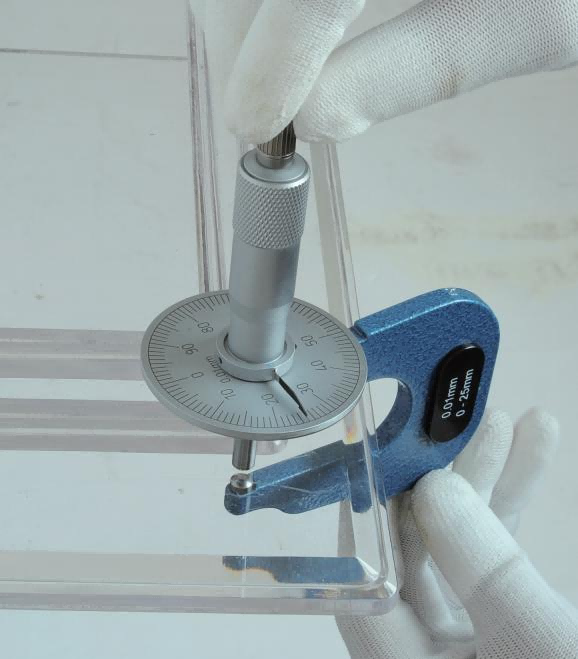

大刻度盤讀數方便、迅速。用于測量板材厚度。
硬質合金測量面；棘輪測力。
| 貨號 | 測量范圍 | 精度 | 弓深 |
|---|---|---|---|
| 平測量面 | |||
| 207-01-010 | 0-15mm | 0.004mm | 50mm |
| 207-02-010 | 0-25mm | 0.004mm | 50mm |
| 207-03-010 | 0-50mm | 0.005mm | 100mm |

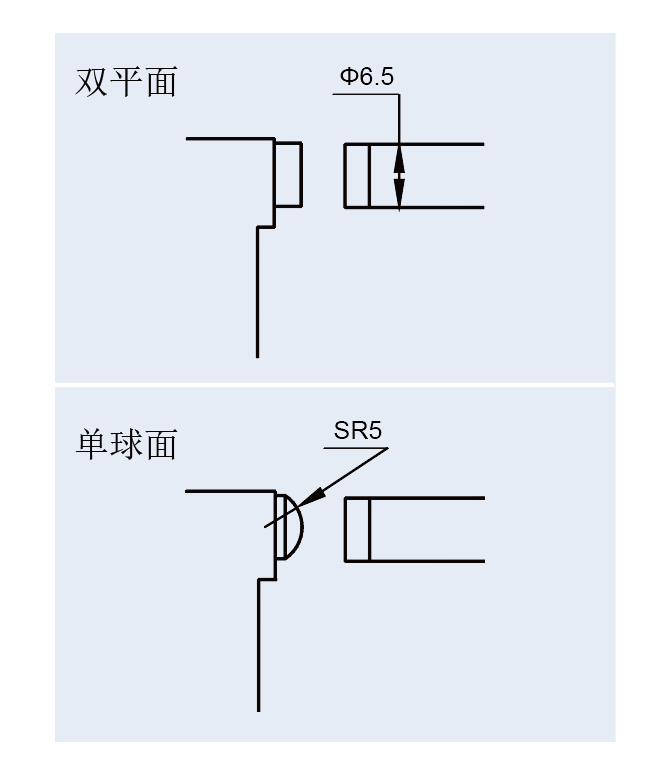

| 球測量面 | |||
| 207-31-010 | 0-15mm | 0.004mm | 50mm |
| 207-32-010 | 0-25mm | 0.004mm | 50mm |
| 207-33-010 | 0-50mm | 0.005mm | 100mm |

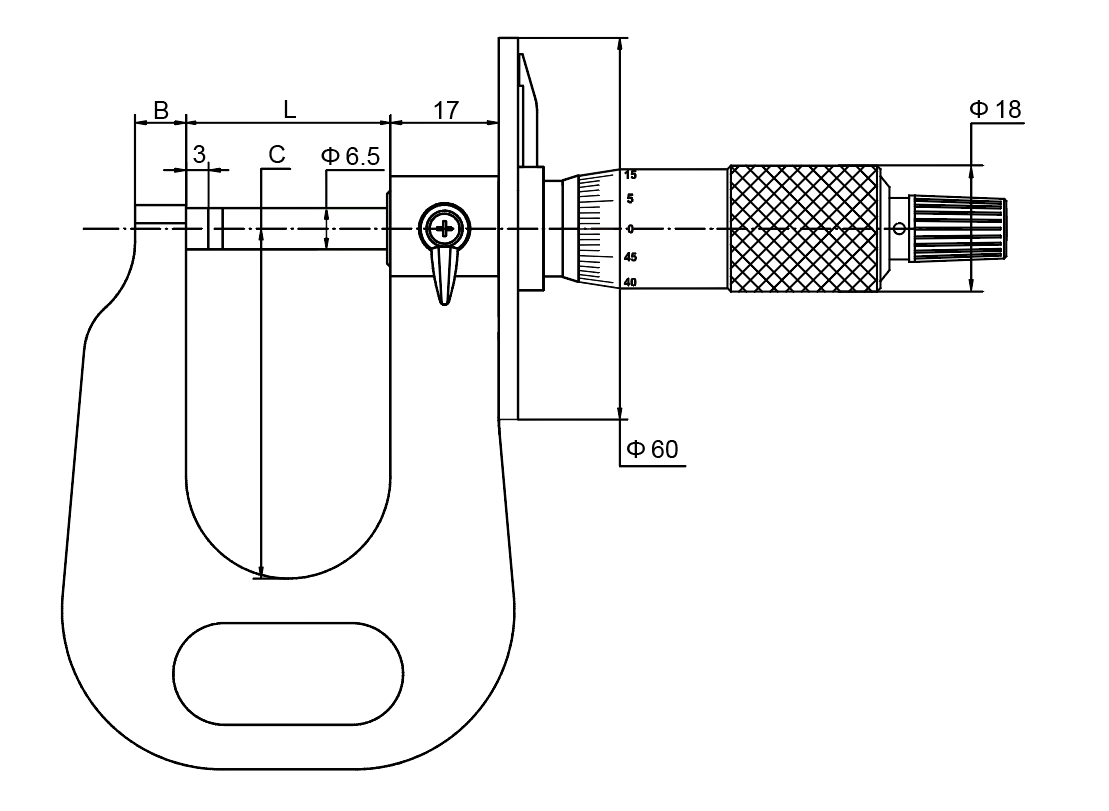

| 測量范圍 | L | B | C |
|---|---|---|---|
| 0-15mm | 22mm | 8mm | 50mm |
| 0-25mm | 32mm | 8mm | 50mm |
| 0-50mm | 57mm | 12mm | 100mm |
