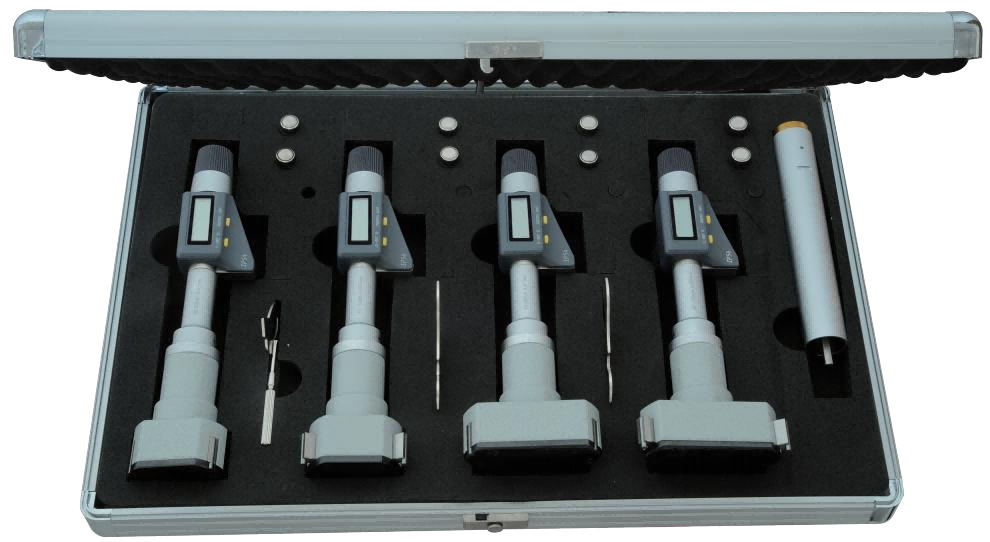

內徑千分尺
IP54 防護等級。
數顯系統與132-XX-554電子千分尺相同。
適用于盲孔和通孔的精密測量，100mm以內配校對環規，100mm以上選配。
硬質合金測量面。
棘輪測力。
鋁合金主體。

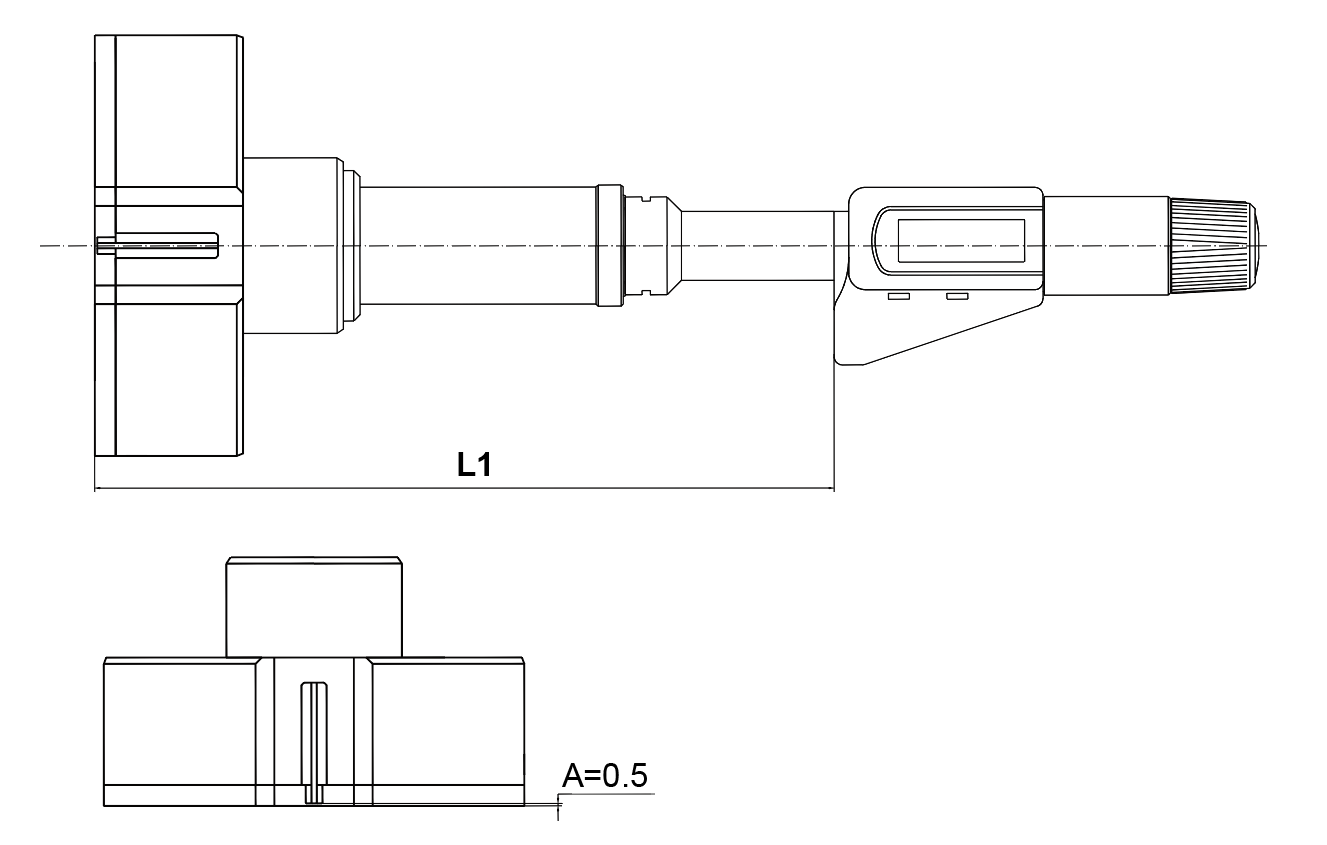

| 貨號 | 測量范圍 | 精度 | 校對環規 | L1 | 接長桿 |
|---|---|---|---|---|---|
| 外表面噴漆 | |||||
| 335-10-850 | 50-63mm | 0.005mm | Φ62mm | 114mm | 150mm |
| 335-11-850 | 62-75mm | 0.005mm | Φ62mm | 114mm | 150mm |
| 335-12-850 | 75-88mm | 0.005mm | Φ87mm | 114mm | 150mm |
| 335-13-850 | 87-100mm | 0.005mm | Φ87mm | 114mm | 150mm |
| 335-61-950 | 100-125mm | 0.005mm | Φ100mm | 145mm | 150mm |
| 335-62-950 | 125-150mm | 0.005mm | Φ150mm | 145mm | 150mm |
| 335-63-950 | 150-175mm | 0.005mm | Φ150mm | 145mm | 150mm |
| 335-64-950 | 175-200mm | 0.005mm | Φ200mm | 145mm | 150mm |
| 335-65-950 | 200-225mm | 0.007mm | Φ200mm | 145mm | 150mm |
| 335-66-950 | 225-250mm | 0.007mm | Φ250mm | 145mm | 150mm |
| 335-67-950 | 250-275mm | 0.007mm | Φ250mm | 145mm | 150mm |
| 335-68-950 | 275-300mm | 0.007mm | Φ275mm | 145mm | 150mm |
| 貨號 | 套尺測量范圍 | 校對環規 | A | 接長桿 |
|---|---|---|---|---|
| 外表面鍍鉻 | ||||
| 385-22-950 | 2-3mm | Φ2.5mm | / | / |
| 385-33-950 | 3-6mm | Φ4,5,6mm | / | / |
| 335-44-850 | 6-12mm | Φ6,8,10mm | 0.5mm | 100mm |
| 335-44-950 | 6-12mm | Φ6,8,10mm | 1.5mm | 100mm |
| 335-46-950 | 12-20mm | Φ16mm | 0.5mm | 150mm |
| 335-47-950 | 20-40mm | Φ25,40mm | 0.5mm | 150mm |
| 335-48-950 | 20-50mm | Φ25,40mm | 0.5mm | 150mm |
| 外表面噴漆 | ||||
| 335-50-850 | 50-100mm | Φ62,87mm | 0.5mm | 150mm |
