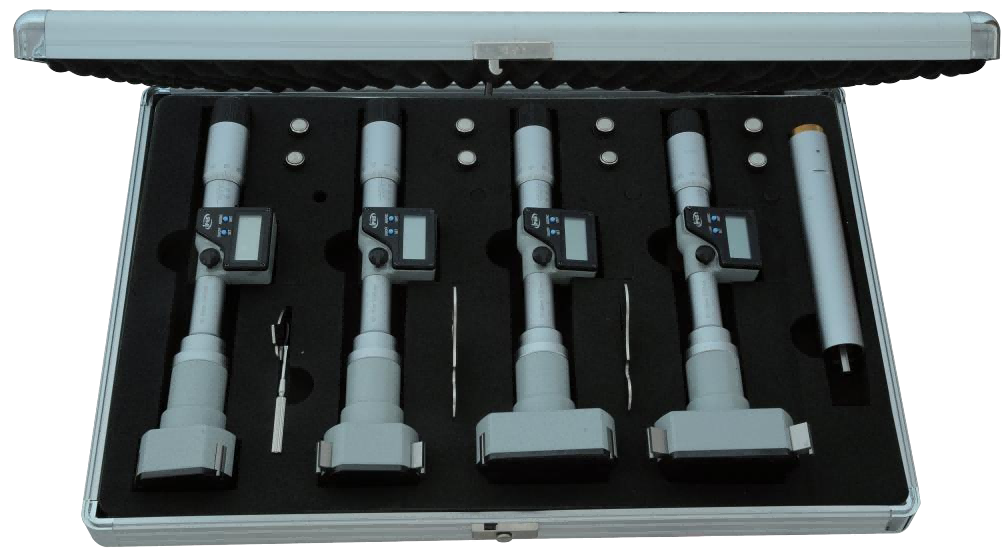

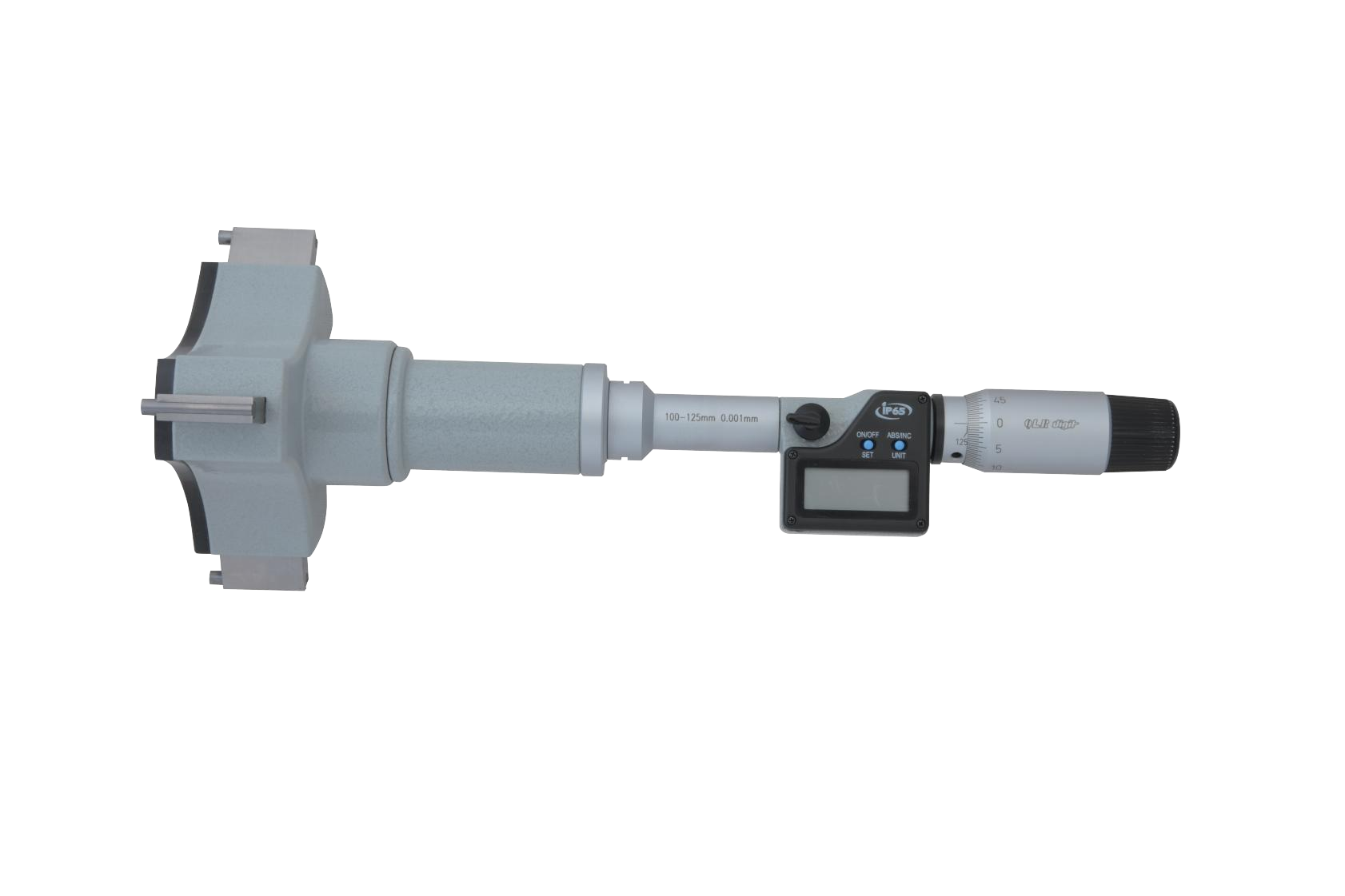

內徑千分尺
IP65防護等級。
數顯系統與133-XX-450電子千分尺相同。
適用于盲孔和通孔的精密測量。
測量范圍2-6mm為兩點型，用于測量小孔。
硬質合金測量面（不包括6-12mm）。
棘輪測力。
100mm以內配校對環規，100mm以上選配。

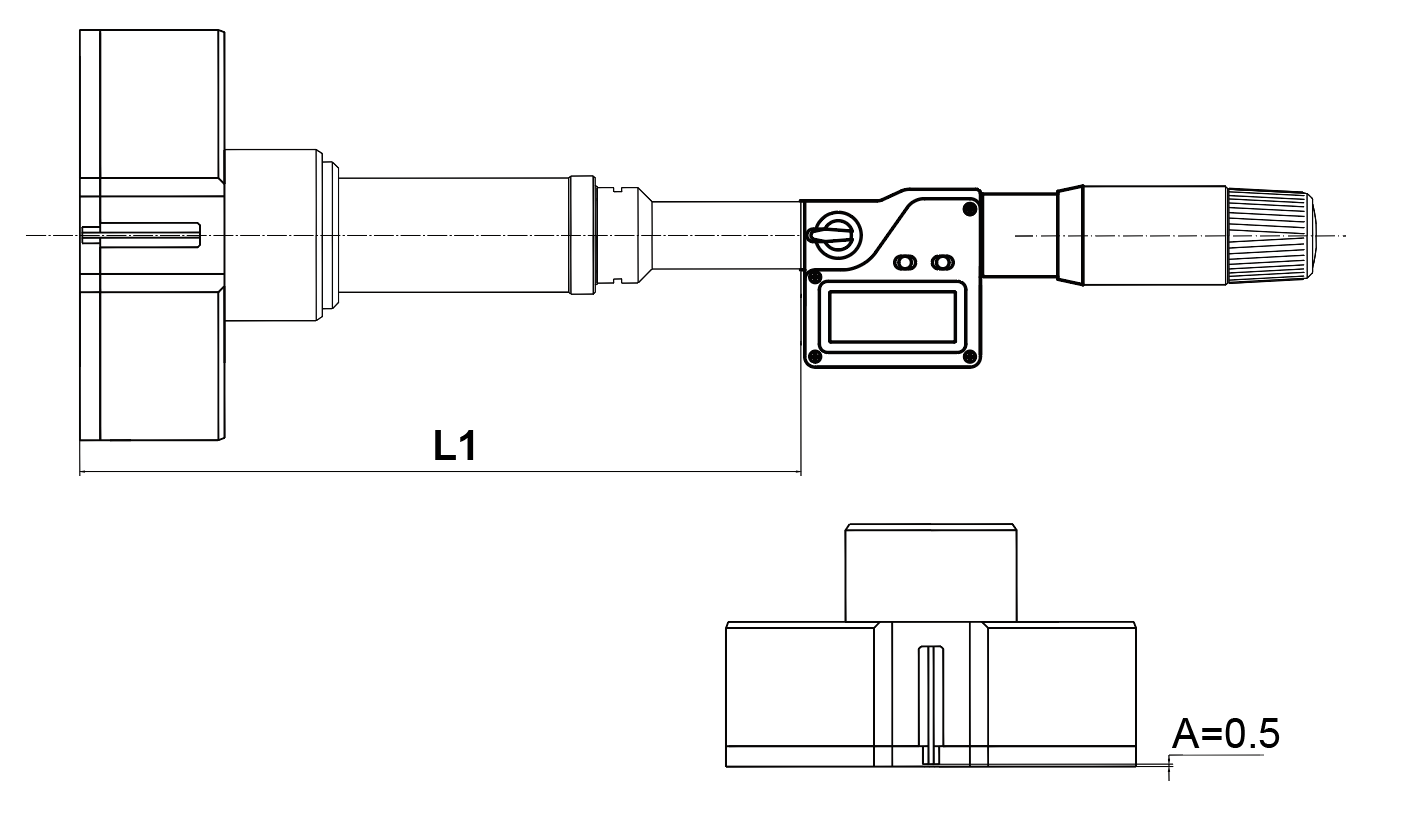

| 貨號 | 測量范圍 | 精度 | 校對環規 | L1 | 接長桿 |
|---|---|---|---|---|---|
| 335-10-650 | 50-63mm | 0.005mm | Φ62mm | 114mm | 150mm |
| 335-11-650 | 62-75mm | 0.005mm | Φ62mm | 114mm | 150mm |
| 335-12-650 | 75-88mm | 0.005mm | Φ87mm | 114mm | 150mm |
| 335-13-650 | 87-100mm | 0.005mm | Φ87mm | 114mm | 150mm |
| 335-61-650 | 100-125mm | 0.005mm | Φ100mm | 145mm | 150mm |
| 335-62-650 | 125-150mm | 0.005mm | Φ150mm | 145mm | 150mm |
| 335-63-650 | 150-175mm | 0.005mm | Φ150mm | 145mm | 150mm |
| 335-64-650 | 175-200mm | 0.005mm | Φ200mm | 145mm | 150mm |
| 335-65-650 | 200-225mm | 0.007mm | Φ200mm | 145mm | 150mm |
| 335-66-650 | 225-250mm | 0.007mm | Φ250mm | 145mm | 150mm |
| 335-67-650 | 250-275mm | 0.007mm | Φ250mm | 145mm | 150mm |
| 335-68-650 | 275-300mm | 0.007mm | Φ275mm | 145mm | 150mm |
| 貨號 | 套尺測量范圍 | 校對環規 | A | 接長桿 |
|---|---|---|---|---|
| 外表面鍍鉻 | ||||
| 385-22-650 | 2-3mm | Φ2.5mm | / | / |
| 385-33-650 | 3-6mm | Φ4,5,6mm | / | / |
| 335-44-550 | 6-12mm | Φ6,8,10mm | 0.5mm | 100mm |
| 335-44-650 | 6-12mm | Φ6,8,10mm | 1.5mm | 100mm |
| 335-46-650 | 12-20mm | Φ16mm | 0.5mm | 150mm |
| 335-48-650 | 20-50mm | Φ25,40mm | 0.5mm | 150mm |
| 外表面噴漆 | ||||
| 335-50-650 | 50-100mm | Φ62,87mm | 0.5mm | 150mm |
